Place of Origin:
Hebei,China
Brand Name:
RuiTong Bit
Certification:
API/ISO9001
Model Number:
TCI tricone drill bit
Contact Us
Main Stratigraphic Distribution
1. The Quaternary alluvial layer consists of humus soil in the upper part, with a thickness of 1.0-4.0 meters, and an alluvial gravel layer of 45-120 meters in the lower part, which is yellow brown and dense, filled with a small amount of cohesive soil. The particle size of the gravel is 2-25cm, composed of quartzite, with good roundness and a gravel content of over 70%.
2. The bedrock is limestone, with a drillability level of 5-6. The rock has a medium thick layered structure with a dip angle of 35-40 °. The basic quality level of the rock is Grade IV. The karst phenomenon is moderately developed, and the karst caves are severely dissolved. The karst caves in the rock mass are mostly filled with clay.
Drilling tool structure (from bottom to top): roller drill bit - variable diameter receiver - powder collection tube - stabilizer - drill collar - drill rod - machine mounted drill rod
Selection and Processing of Roller Drill Bit
Drilling into gravel and limestone formations uses low toothed and large toothed roller bits. In today's fiercely competitive market economy, the project cost is relatively low. Due to the high price of newly produced roller bits, our company has specifically collected roller bits with higher hardness that have been retired from the Panjin Petroleum Drilling Team in order to reduce drilling costs. In particular, the expansion drill bit is a drill bit body that we self process with round steel. The Φ 216mm roller bit is divided into three separate wheel arms, with a total of six welded in the middle of the bit body in a stepped shape. Its outer diameter is controlled at 550mm, and the cutting and welding of Φ 216mm are carried out When the roller arm is used, it should be placed in a cooling tank to cool down, in order to prevent the lubricating oil in the roller arm from burning and overflowing due to high temperatures during cutting and welding, improve its service life, and greatly reduce the cost of water well drill bits. Before going into the well, check the wear and tear of the roller bit, whether it rotates flexibly and the welding quality, and do a good job in daily maintenance of the roller bit.
| Processing Type | Forging |
| Dimensions Of Three Cone Drill Bits | 3-26 Inches |
| Usage | Horizontal Directional Drilling, Oil And Gas Extraction |
| Showroom Location | Hebei, China |
| Circulation Type | Air Or Water |
| Applicable Industries | Construction Works, Energy & Mining |
| Kumulierte Dauer | ≥80 Hour |
| Thread Type | 2 3/8 Reg To 7 5/8 Reg |
| Warranty | 1 Year |
| Type | Tricone Drill Bit |

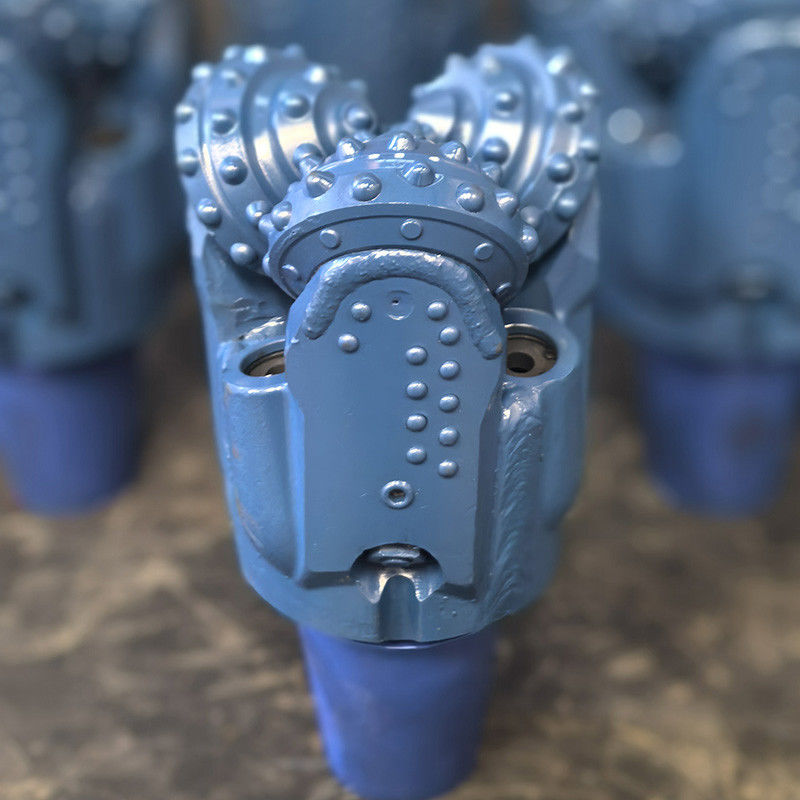

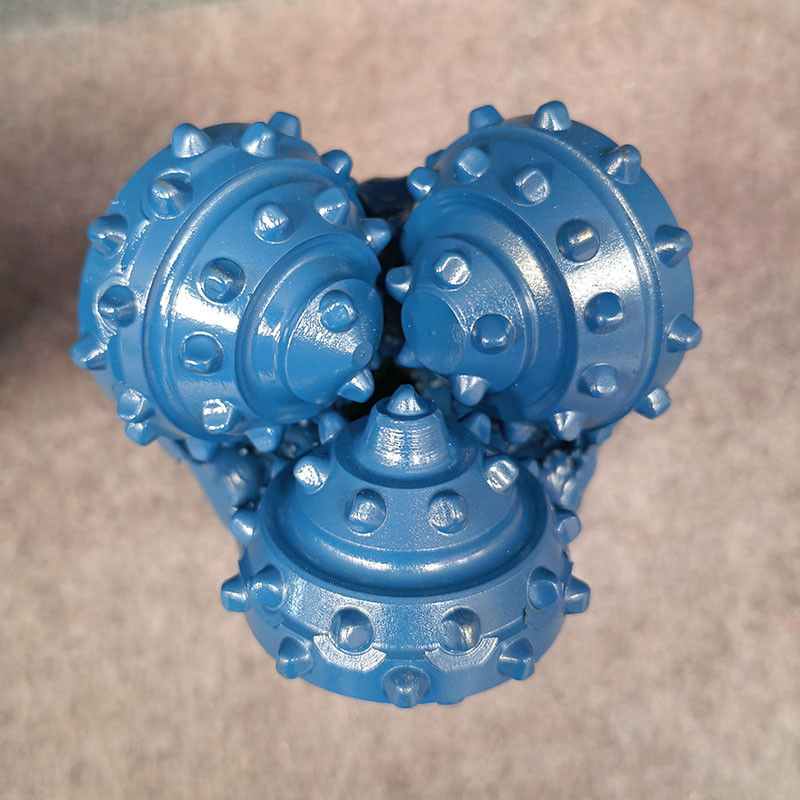

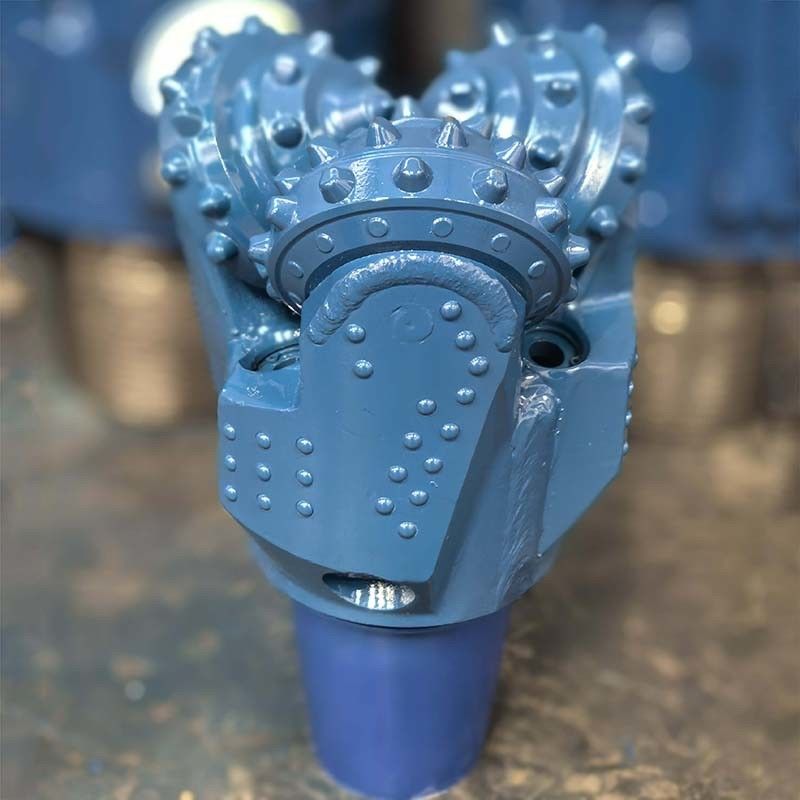

RuiTong Bit's TCI tricone drill bit is a high-quality product originating from Hebei, China. With certifications from API and ISO9001, this product ensures reliability and performance in various drilling applications.
The versatile nature of the TCI tricone drill bit makes it suitable for a range of product application occasions and scenarios. It is ideal for Horizontal Directional Drilling and Oil And Gas Extraction projects, making it a valuable tool for industries such as Construction Works and Energy & Mining.
Equipped with a durable design and precision engineering, the tricone drill bit from RuiTong Bit offers efficient drilling capabilities. Its rotating cone bits are designed for optimal performance, especially in challenging drilling environments.
Product Packaging:
The Tricone Drill Bits are carefully packaged in sturdy cardboard boxes to ensure safe transportation and storage. Each drill bit is securely placed in a foam insert to prevent any damage during shipping. The box is labeled with product information and handling instructions for easy identification.
Shipping:
Once the Tricone Drill Bits are packaged, they are shipped using a reliable courier service to ensure prompt delivery to the customer's location. Each package is securely sealed and labeled with the recipient's address and tracking information for easy monitoring. Customers can expect their drill bits to arrive in excellent condition and ready for use upon delivery.
Q: What is the brand name of the tricone drill bit?
A: The brand name is RuiTong Bit.
Q: What is the model number of the tricone drill bit?
A: The model number is TCI tricone drill bit.
Q: Where is the tricone drill bit manufactured?
A: The tricone drill bit is manufactured in Hebei, China.
Q: What certifications does the tricone drill bit have?
A: The tricone drill bit is certified by API/ISO9001.
Q: What are the payment terms for purchasing the tricone drill bit?
A: The payment terms are T/T and L/C.
