Place of Origin:
Hebei,China
Brand Name:
Geological PDC Bit
Certification:
ISO9001
Model Number:
PDC drill bit
Contact Us

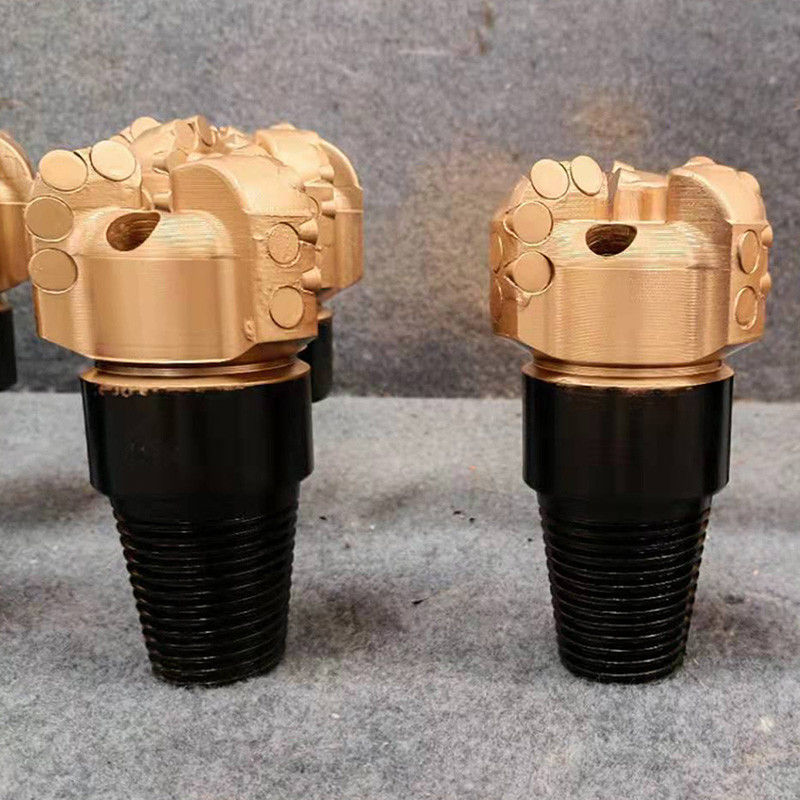

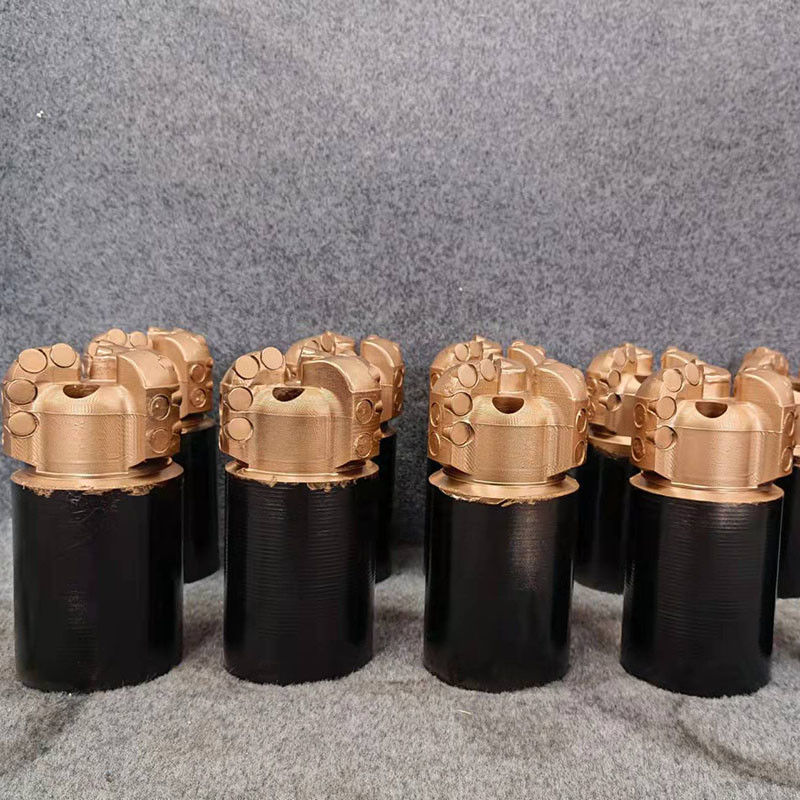

PDC drill bits are manufactured by attaching cutting teeth composed of polycrystalline diamond (PDC) to the drill steel body. Polycrystalline diamond is an extremely hard composite material created through a single-step process involving the sintering of artificial diamond micro powder, binder, and hard alloy matrix under high temperature and ultra-high pressure conditions. This material combines the exceptional wear resistance of diamond with the outstanding impact resistance of hard alloy, enabling PDC drill bits to perform well in diverse and challenging working environments.
The diamond composite of PDC drill bits has exceptionally high hardness and wear resistance, allowing them to maintain sharpness for extended periods while drilling into hard rocks. This durability significantly reduces the need for frequent replacement of drill bits.
The design structure of PDC drill bits is distinctive, featuring a small diameter, low lateral friction, and excellent lubrication performance. These characteristics effectively minimize friction during drilling operations, enhancing drilling speed. Whether drilling rapidly in soft rock or making a breakthrough in hard rock, PDC drill bits showcase outstanding cutting performance.
PDC drill bits can operate in high-temperature environments with stability, remaining resistant to deformation or failure caused by thermal expansion.
| Product Name | Geological PDC Bits |
|---|---|
| Applications OF PDC Drilling Bits | Soft To Medium Shale Sequences With Low Abrasiveness |
| Design & Customize | 98mm To 3593.7mm |
| Name | PDC Bits & Oil Drill Bits |
| Body Material | Steel Body |
| Origin | China |
| Packing | Wooden Box |
| After-sale Service | Provide Accessories And Maintenance |
| Formation | Soft To Medium Soft |
| Applicable Industries | Construction Works, Energy & Mining, Mining |
Geological exploration is ideal for core drilling , hydrogeological investigation , complex geological conditions, and enhancing exploration efficiency.
For mining operations, it excels in perforation, stripping tasks, and offers a resilient, long-lasting solution to boost mining speed and efficiency.
In the realm of oil and gas drilling , this technology stands out as the go-to option for intricate wellbore operations like conventional drilling, horizontal wells, and directional wells. It ensures efficient drilling processes while extending service life.
Furthermore, it caters to various engineering projects like tunnels and water conservancy initiatives, delivering effective and trustworthy drilling solutions.
Product Packaging:
Our PDC Drill Bits are carefully packaged in sturdy and protective boxes to ensure they arrive in excellent condition.
Shipping:
We offer fast and reliable shipping services to deliver your PDC Drill Bits to your location with care and efficiency.
Q: What is the brand name of this PDC Drill Bits product?
A: The brand name is Geological PDC Bit.
Q: What is the model number of the PDC Drill Bits?
A: The model number is PDC drill bit.
Q: Where is the place of origin for these PDC Drill Bits?
A: The place of origin is Hebei, China.
Q: What certification does the product have?
A: The product is certified with ISO9001.
Q: What is the minimum order quantity for these PDC Drill Bits?
A: The minimum order quantity is 1 piece.
